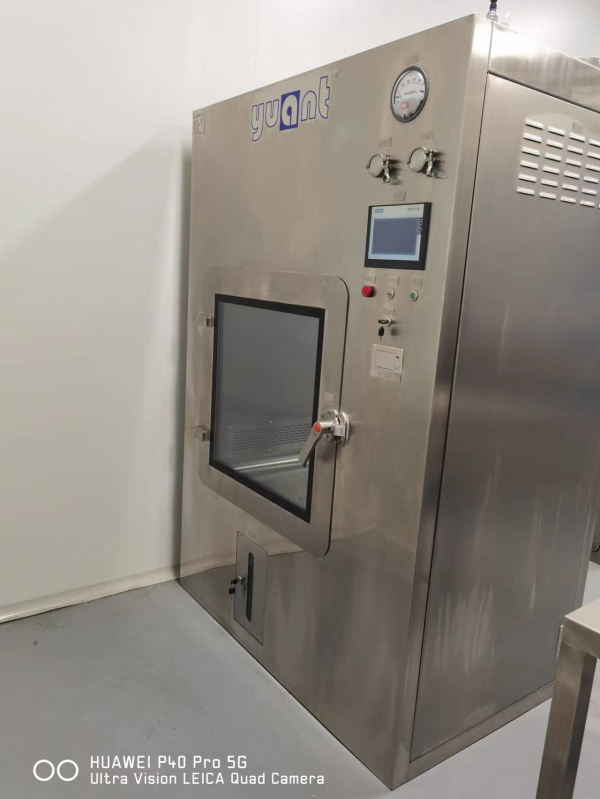

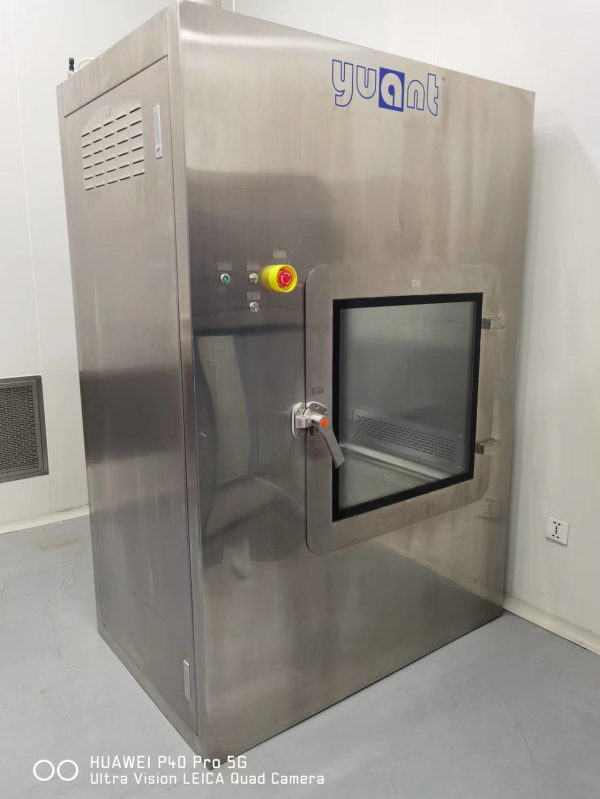

VHP传递窗

1

设备内腔表面粗糙度

/Surface roughness of the inner cavity of equipment

Ra≤0.5um

2

无菌传递总时间

/Total time of aseptic transfer

100min

3

灭菌总时间

/Total sterilization time

40min

4

通风总时间

/Total ventilation time

50min

5

灭菌浓度

/Sterilizing concentration

200-500ppm

6

灭菌后残留VHP浓度标准

/Standard of residual VHP concentration after sterilization

≤1ppm

7

内腔材质/Inner cavity material

SUS316/T2.0mm

8

设备外表面材质

/External surface material of equipment

SUS304

9

换气次数

/Air change times

150-200pcs

10

设备运行阶段内部洁净等级

/Internal cleanliness grade of equipment operation stage

A级

11

设备泄露率

/Equipment leakage rate

≤0.5%

12

噪声级别

/Noise level

≤75db

13

灭菌效果

/Sterilization effect

VHP发生器D值开发设定（6LOG）

14

总功率(W)

/Total power (W)

≤2000W

15

非金属材料

/Nonmetallic materials

（PTFE）、Silica   gel、Tempered glass

16

汽化温度

/Vaporization temperature

≤100℃
